FEATURES
• Sheet-metal unit box structure
• No front door. With fixed rear panel. The installation lugs and the product forepart are aligned
• Configuration of optical cable fixation and grounding device, which could be installed at the unit box side
• ETSI complied, 19” installation, with good commonality
• Sensible fibre management system; the bending radius is > 30mm
• With sensible structure design. Provides separated leading in and out of the fibre
• Clear identification for input and output of each fibre
• Available for FC, SC and LC connector
SPECIFICATIONS
• Insertion loss: PC 0.2dB; APC 0.3dB
• Return loss: UPC 50dB; APC 60dB
• Life: >1000 times (plug-in & pull-out).
ORDERING INFORMATION
| Product Name | Description | Dimension HxWxD (mm) | Full Capacity | Remarks |
|---|---|---|---|---|

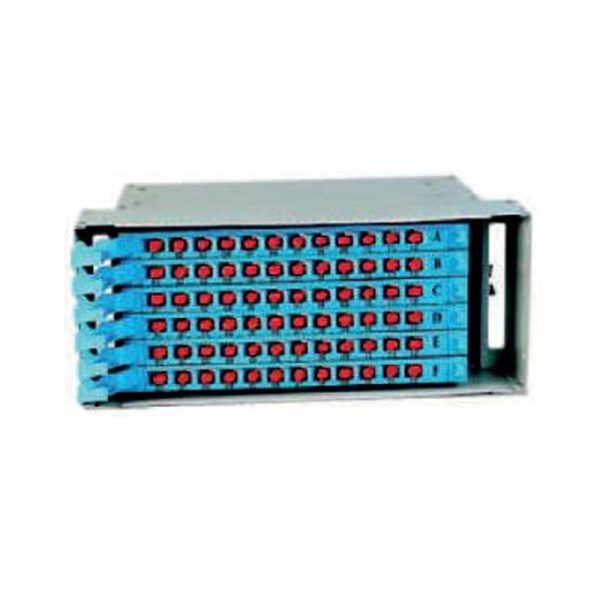

| Fibre Patch Panel | FRP72Eb | 175×482×221 | 72 cores | |
| FRP48Eb | 132×482×221 | 48 cores | ||
| FRP24Eb | 88×482×221 | 24 cores | ||
| FRP12Eb | 44×482×221 | 12 cores |
