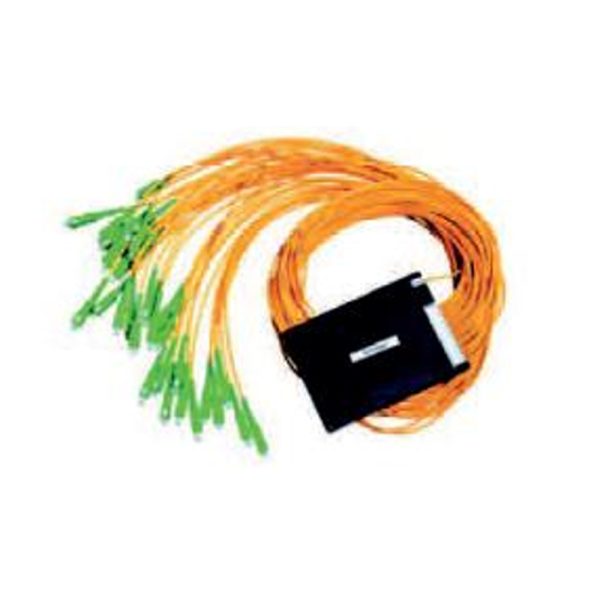

Optical Splitter (Box-capsulation)

FEATURES
• The PLC optical splitter features wider wavelength band-pass,consistent splitting performance and small form factor
• Optional connector types: SC/UPC, SC/APC, FC/UPC
• Optional optical fiber diameter: 0.9, 2.0, 3.0 mm
• The splitting channel: 1(2) x 2/4/6/8/16/32/64
• Fiber Type: G657A1.

SPECIFICATIONS

Type	Max Connector Loss	Max Insertion Loss without Connector	Typical Insertion Loss without Connector	Uniformity without Connector	Return Loss	Directivity without Connector	PDL
1×2	0.3 dB	4.3 dB	4.3 dB	0.8 dB	55 dB	55 dB	0.2 dB
2×2	0.3 dB	4.7 dB	4.3 dB	0.8 dB	55 dB	55 dB	0.2 dB
1×4	0.3 dB	7.7 dB	7.6 dB	0.8 dB	55 dB	55 dB	0.3 dB
2×4	0.3 dB	8.0 dB	7.6 dB	0.8 dB	55 dB	55 dB	0.3 dB
1×8	0.3 dB	11.1 dB	10.9 dB	1.0 dB	55 dB	55 dB	0.3 dB
2×8	0.3 dB	11.4 dB	10.2 dB	1.0 dB	55 dB	55 dB	0.3 dB
1×16	0.3 dB	14.3 dB	14.1 dB	1.0 dB	55 dB	55 dB	0.3 dB
2×16	0.3 dB	15.2 dB	14.8 dB	1.0 dB	55 dB	55 dB	0.3 dB
1×32	0.3 dB	17.5 dB	17.0 dB	1.5 dB	55 dB	55 dB	0.3 dB
2×32	0.3 dB	18.1 dB	17.7 dB	1.8 dB	55 dB	55 dB	0.3 dB
1×64	0.3 dB	21.5 dB	21.0 dB	2.0 dB	55 dB	55 dB	0.5 dB
2×64	0.3 dB	21.7 dB	21.2 dB	1.8 dB	55 dB	55 dB	0.5 dB

ORDERING INFORMATION

Description	Part Number	Dimension HxWxD(mm)	Full Capacity	Remarks
Optical Splitter (Box-capsulation type)	1-2-1×2-6-3-4	FBT type	90×20×10	1 – adapter type 2 – fiber optic mode number 3 – wavelength range 4 – fiber length 5 – fiber diameter (default diameter: ⌀2) Default wavelength Broadband: ±20nm Fiber optic length: 1.0m, 1.2m, 1.5m, 1.8m
	1-2-1×4-6-3-4		100×80×10
	1-2-1×8-6-3-4		100×80×10
	1-2-1×16-6-3-4		141×115×18
	1-2-1×32-6-3-4		141×115×18
	1-SM-1×4-6-4-PLC	Big Box PLC type	100×80×10
	1-SM-1×8-6-4-PLC		100×80×10
	1-SM-1×16-6-4-PLC-MIN	Small Box PLC type	120×80×18
	1-SM-1×32-6-4-PLC-MIN		120×80×18
